E7 mandolin chord
E dominant seventh on mandolin is 1-2-5-(4), low string to high (G D A E), and it sounds G# E D (G#). It is one of the seventh chords on the chart.

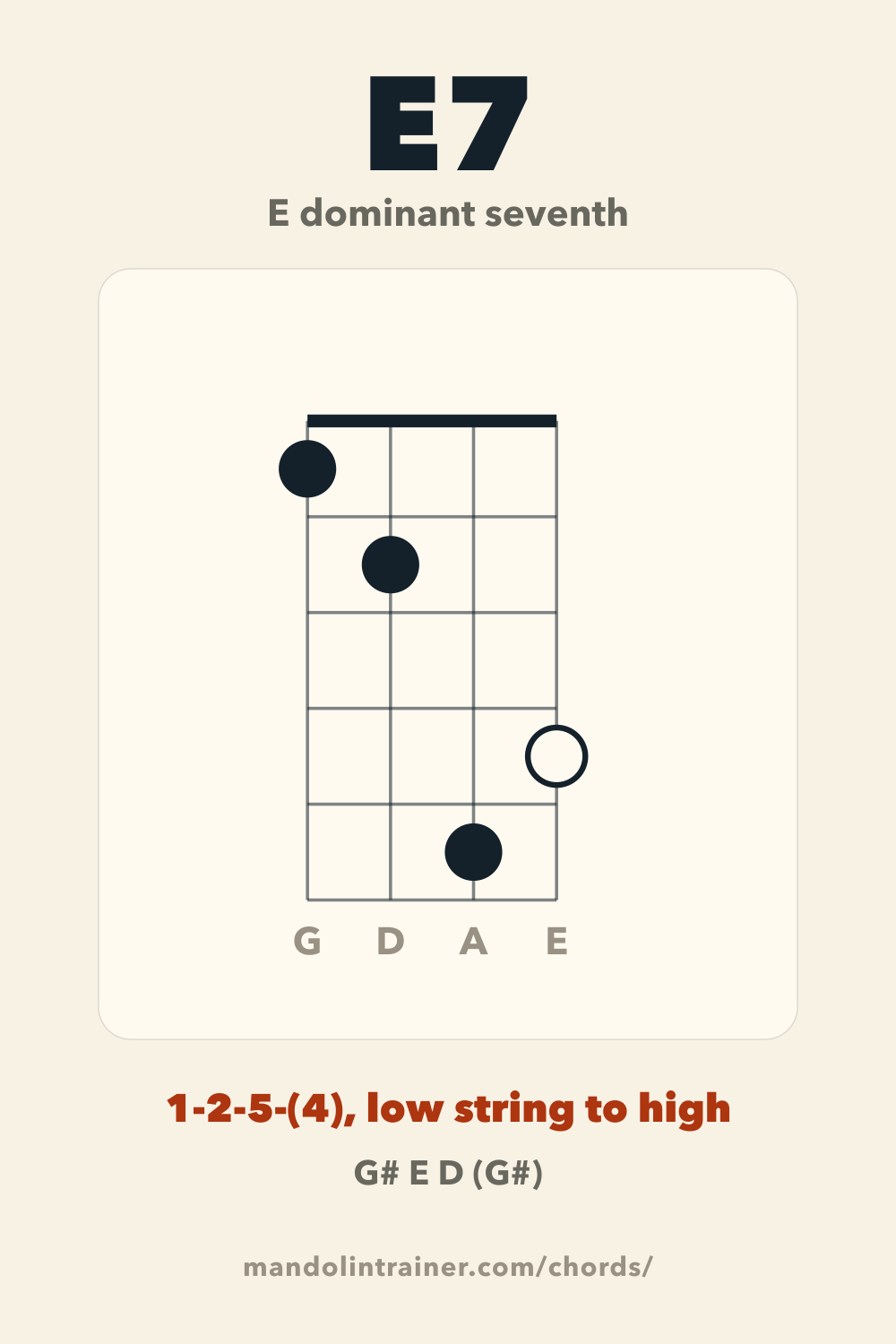

The shape
Nut at the top, strings running down the page low to high, G D A E. The numbers under the name are the frets in that order. A filled dot is a finger and a hollow dot is the string you add when your hand allows it. An o above the nut is an open string, and a dashed o is an open string you can leave out.
First finger on the G pair at the first fret, second on the D pair at the second, and then a stretch: fourth finger on the A pair at the fifth, third finger on the E pair at the fourth. It is the widest grip on the chart, four frets from end to end.
The G# on the bottom is the third, which is what lets this one reach lower than a rooted shape would. The D on the A pair is the flat seventh. The note that gives way here is the fifth rather than the root, so this is not a shell the way the C7 and the D7 are.
Where it turns up
The V7 chord that pulls back to A. That pull is the whole job of a seventh: it makes the chord after it sound like home.
Tunes that use it
Written out here with the chord letters over the bars where the change happens, so you can put the shape under something rather than drilling it on its own.
A diagram cannot hear you
Mandolin Trainer listens through your microphone, hears which notes of the chord are sounding, and names the string that should be carrying a note it cannot hear, which is the thing a diagram can never do. The Chord Theory section teaches these shapes and then checks them. Free while it is in beta.
Open the appRuns in your browser. The audio never leaves your device. iOS app coming soon.
Other seventh chords
A dominant seventh has four notes and this instrument has four courses, but the ones that fit a hand give a note up. Some of these keep the root, and some keep the fifth and the third and let the root go: that is a shell, and it is what a mandolin plays behind a fiddle anyway.
